SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Color: Customized Colors

DIY Supplies: ELECTRICAL

Feature: Low Noise

Hign-concerned Chemical: None

Impeller: stainless steel

Liquid: HOT WATER, Clean Water

MOQ: 100PCS

Motor: 100% Copper Wire

Origin: Mainland China

Package: 1pcs/carton

Pump Body: stainless steel

Standard or Nonstandard: Standanrd

Theory: Surface Pump

Usage: Pumping Water

application: Automotive Industry

brand name: YINJIA

customized support: OEM, ODM

horsepower: 0.5HP

model number: CSm37

motor: AC Motor

outlet size: 1.25''*1''

place of origin: Fujian, China

power: 0.37KW

power source: Electric

pressure: Other

structure: Single-stage Pump

voltage: 220V/380V

warranty: 12 Months

Friends, welcome to our store,I'm your dedicated counselor, Candy Zou. Contact customer service to receive a coupon before ordering.If you need other models of this product and have any question, please contact me, I will send the product link for you to buy!  You can also add my What s app:+86 15107337383 to contact me. ​​​​​​​Tel: +86 15107337383 Email: 724567583@qq.com Wechat:15107337383

APPLICATIONS -Suitable for use with clean water,or non-aggressive liquids only,without sand or other solid impurities. -Suitable for industrial use and urban water supply,pressure boosting for high building and fire fighting,garden irrigation,long distance water transfer,heating ventilation and air controlling,circulation and pressure boosting for cold hot water,and supporting equipment etc.
OPERATING LIMITS -Total suction lift up to 6-8 mt,with foot valve -Max.operating pressure:8 bar -Max.ambient temperature:+40°C -Max.liquid temperature:+90°C -Max.altitude:+1000mt			DESIGN FEATUIRES -Pump body/Impeller: S.S304 -Motor bracket:Aluminium -100% copper winding -Motor shaft:AISI304 welded shaft -Mechanical seal:Graphite/Ceramic/NBR/S.S304
MOTOR -Insulation class:B -Protection:IP44 -Speed of rotation:2850rpm -Continuous duty:S1			SPECIAL FEATURES ON REQUEST -Carbon/Sic/V mechanical seal -Other voltage and frequnecy -Insultation  class:F

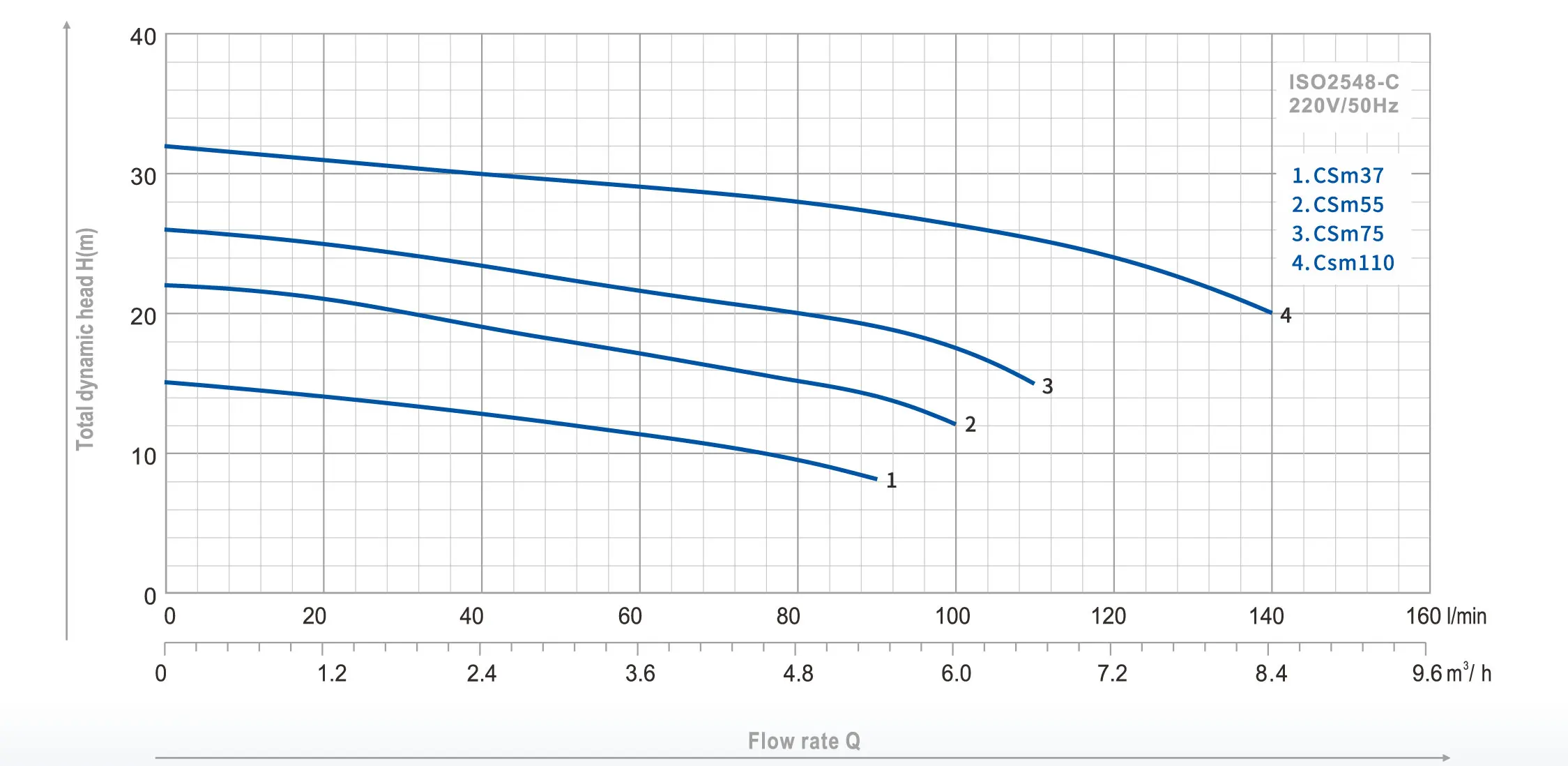

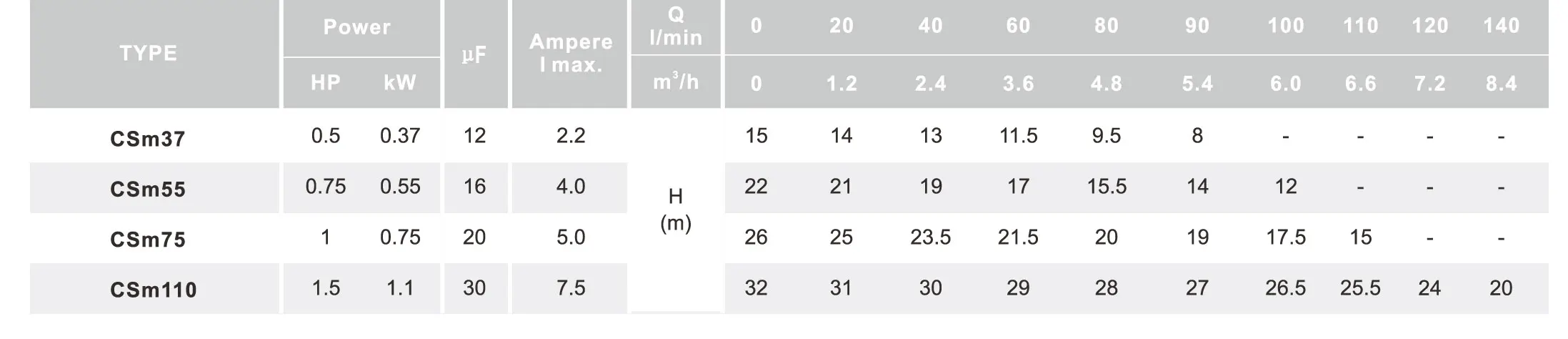

PERFORMANCE

Fujian New Yinjia Pump Co.,Ltd established in 1990, has specialized in various of surface clean water pumps. Covering an area of 66,000m², with 250 employess, monthly capacity 60,000pcs. Thanks for advanced production equipment and strict QC system, we keep providing high quality pumps with factory direct price, and support 1 year gurantee. Welcome to inquiry Yinjia pump, always at your service!

FAQ

Q: Are you a factory or trading company? A: We are a professional surface water pump manufacturer since 1990, located in Fuan, Fujian, China. Q: Do you provide OEM/ODM service? A: Yes, we are premium OEM/ODM manufacturer which assessed by independent third parties. Q: What is the feature of your products ? A: Our products have 3 obviously features: quite, powerful, heavy duty.   Q: What is your MOQ ? A: 100 pcs per model for factory brand and package. 300 pcs per model for OEM brand and package. Q: How do you control the quality ? A: All production process strict to follow ISO9001 system, QC team check the quality during the production and do the test before each shipment. Q: What is your delivery time? A: 15 days for sample order, 30 days for container order. ( Busy season may need more days )
