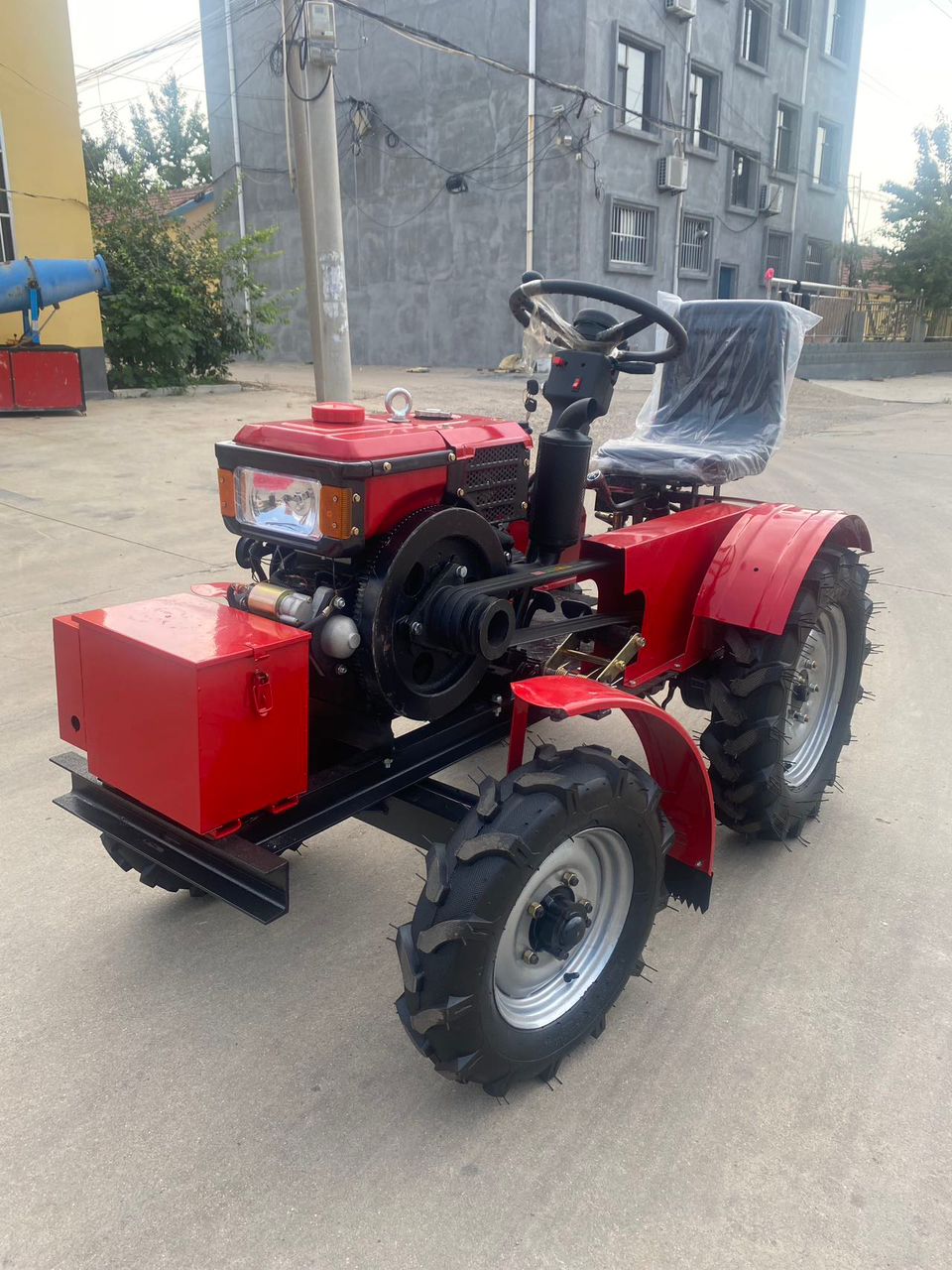

Basic introduction tractor’s

Mini Tractor 25HP 30HP 50HP 4 drive Tractor best price agricultural farming mini tractor

Tavol 30hp Tactor Main Parameters
Model			TL304
Type			4×4
Machine parameters	PTO power (KN)	18.75
		Rated Traction( KN)	10.5
		Dimensions(mm)	3300×1500×2350
		Wheelbase(mm)	1965
		Track(mm)	Front wheel	1150
				Rear wheel	1200-1360
		Minimum ground clearance(mm)			330
		Turning circle radius	Unilateral braking	2.7±0.20,2.85±0.20
				Not unilateral braking	3.0±0.30,3.15±0.30
		Weight (KG)			1828
Drive Train	Clutch			Single or dual stage clutch
		Gearbox			8+2 shift
Walking steering	Tire	Front wheel	6.00-16/6.5-16/7.5-16
				Rear wheel	9.4-24/11.2-24/12.4-24
Braking system	Service brake			Shoe brake
		Parking brake			Manipulator brake
Working equipment	Maximum lifting force at 610mm(KN)			8.3
		Suspension mechanism			Three-point suspension type1
		Hydraulic output			Optional 1 or 2 groups
PTO shaft	PTO speed r/min			540/760 or 540/1000
Engine	Engine brand			Laidong
		Engine type			Diesel engine
		Engine cylinder			4
Start	Start method			Electric
This parameter table is for reference only, everything is based on actual products

This series is maiddle hp tractor,which directly connected with its engine.

 Jaw type differential lock can improve the pass-ability.

Single stage clutch or two stage clutch.

Hydraulic output interface can make direct cinnection with the dump trailer.

This series tractor can have many different configurations.

Details Images

Assembly Process

Professional factory, advanced production equipment. The management system is perfect, the source process is firmly grasped, and the product quality is controlled.
Strict quality control process: laser blanking-stamping-processing-electrophoresis-coating-assembly

Packing photo

Optional CKD&SKD Package/ Full & Farm containers

Main application

Whether it is paddy field or dry field, hilly or hillside, it can meet your different driving and working environment, help you to complete the farm work or traction work more quickly and efficiently.

Certifications

Tavol Group is a high-tech groups companies, which engage in high-end agricultural equipment manufacturing.Tavol Group is located at the foot of the world-famous Mountain Tai. Has Passed ISO9001, CE, SGS, BV, AAA, WIPO madrid international trademark, high-tech enterprise certification and special equipment manufacturing license etc.

Company information

Shandong Tavol Agricultural Machinery Co., Ltd. are Focused on Development Of the Characteristic Agricultural Machinery, Like Paddy Fields, Mountains, Hills etc; High-end Intelligence, Like Unmanned Driving and Beidou Precision Agriculture; also Automation like CVT and Power Gear Shift etc. Products range: 25hp-280hp Farm Tractors and Other Farm Machines. The Mission of Tavol Group is to Assemble the Best Tractors With the Best of Heart, and Strive for the Smiles of One billion Farmers; With the Values of Tolerance, Openness and Win-Win, Adopt Strict Production Technology and Inspection Standards, Select the Best Quality Brand Tractor Parts. To ensure a 100% Quality Standard, We will Independent Development and Production the Core Tractor Parts, Continue to Increase Investment in New Models and Technologies.
